Ersatzteillisten für Toro Roth / TORO Motor B&S Modell-Nr. 252416-0677-01


Ersatzteilliste 1
Ersatzteilliste 2
Ersatzteilliste 3


Pos.BezeichnungErsatzteilnummer
Piston Assembly-.020 O.S. 21 1_366010 1 38160 Piston Assembly-.020 O.S.391288
Gasket-Crankcase1 Cover-1/64 thick 12 8 1_366010 1 38160 Gasket-Crankcase1 Cover-1/64 thick*270856
Ring Set-Piston-.020 O.S. 25 1_366010 1 38160 Ring Set-Piston-.020 O.S.391782
Piston Assembly-.010 O.S. 20 1_366010 1 38160 Piston Assembly-.010 O.S.391287
Ring Set-Piston-.030 O.S. 26 1_366010 1 38160 Ring Set-Piston-.030 O.S.391783
Rod Assembly-Connecting391816
Rope-Rewind Starter (63 long) 58 8 1_366012 1 38160 Rope-Rewind Starter (63 long)66884
Gasket-Crankcase Cover-.009 thick 10 1_366010 1 38160 Gasket-Crankcase Cover-.009 thick*270858
Screw-Crankcase Cover Mounting (2-1/8 long) 22 18 1_366010 1 38160 Screw-Crankcase Cover Mounting (2-1/8 long)93764
Plug, Spark (with gasket)293918
Pin Assembly-Piston-.005 O.S. 29 1_366010 1 38160 Pin Assembly-Piston-.005 O.S.391286
Gasket-Crankcase Cover-.005 thick 9 1_366010 1 38160 Gasket-Crankcase Cover-.005 thick*270857
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
1Cylinder Assembly396209
5Head-Cylinder212305
7Gasket-Cylinder Hd.*271075
8Breather Assembly391575
9Gasket-Valve Cover*27803
10Screw, Breather Mtg. Sem93394
11Entlueftungsschlauch280112
14Screw-Cylinder Head(3 long) 14 11 1_366010 1 38160 Screw-Cylinder Head(3 long)93723
15Plug-Oil Drain91084
15Plug-Hex. Socket93418
16Crankshaft261336
18Cover Assembly-Crankcase391747
20Seal-Oil291675
22Schraube93585
25Kolben391285
Kolben 0.30391289
26Ringsatz391780
Kolbenringsatz 010391781
27Kolbenbolzensicherung260924
28Kolbenbolzen299691
30Dipper-Connecting Rod222329
31Lock-Connecting Rod Screw222299
32Screw-Connecting Rod92909
33Auslassventil261185
34Einlassventil261462
35Ventilfeder65906
36Spring-Exhaust Valve26828
40Retainer-Intake Valve221596
41Drehkappe292260
42Retainer-Exhaust Valve Rotocoil93630
45Tappet-Valve261183
46Gear-Cam212296
50Elbow-Intake212301
51Gasket-Carb. Mtg.à*270267
52Gasket-Intake Elbow Mtg.à*270872
53Screw-Carburetor Mounting Sem93415
54Screw-Intake Elbow Mounting Sem93208
81Retainer-Counterweight222407
188Screw-Sem93535
201Gestaenge261236
209Spring, Governor260695
219Reglerzahnrad391737
220Scheibe221551
222Platte391633
224Schraube93067
227Lever Assy.-Governor391732
229Washer, Governor Lever220680
230Washer-Gov. Crank222450
265Clamp, Casing221535
300Muffler-Exhaust392101
305Screw, Blower Housing Mtg.93158
306Shield-Cylinder222744
308Cover-Cylinder Head222306
353Federring92791
354Nut-Hex.-8-3290576
356Wire-Ground Note: 391255 Wire Jumper Used In Addition To No. 391602 Ground Wire.391602
358Gasket Set391834
383Wrench-Spark Plug89838
506Schraube90200
507Isolator66895
523Cap and Dipstick-Oil Filler392295
524Seal-Filler Tube68838
525Tube-Oil Filler392283
552Bushing-Gov. Crank231056
562Bolzen92613
592Mutter231082
614Splint93306
615Halter93307
616Crank-Governor231057
621Switch, Stop297472
635Elbow-Spark Plug66538
657Screw, Sem93496
751Washer-Flat22355
752Screw-Plug93554
758Counterweight and Bearing Assembly391481
869Einlassventil261463
870Ausl.-Ventil210940
871
883Gasket-Exhaust270917
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer
3Seal-Oil391086
23Flywheel and Ring Gear Assy.-Magneto391988
24Key-Flywheel222698
55Housing-Rewind Starter393576
56Seilscheibe295871
57FEDER STARTER.B&S294303
59Pin, Starter Grip230228
60Grip, Starter Rope66728
63Feder260414
64Adapter-Ratchet Spring230543
65Schraube93067
66Clutch Assy.-Rewind Starter394558
67Kupplungsgehaeuse394897
68Kugel63770
70Ratchet-Rewind Starter Clutch298799
71Washer, Clutch Retainer221653
73Screen-Rotating221796
75Washer, Spring220865
76Scheibe68238
231Screw-Sem93064
304Housing-Blower392738
319Magnetwicklung395326
333Armature Group (MAGNETRON Ignition)395492
334Screw, Breaker Arm Mtg. Sem93381
363Puller-Flywheel(Optional Accessory)19203
373Nut-Hex.92987
608Rueckl.-Starter390391
655Anchor-Spring222598
682Shield-Starter Clutch211516
851Terminal-Ignition Cable221798
897Trigger Coil394970
Ersatzteilliste


Pos.BezeichnungErsatzteilnummer

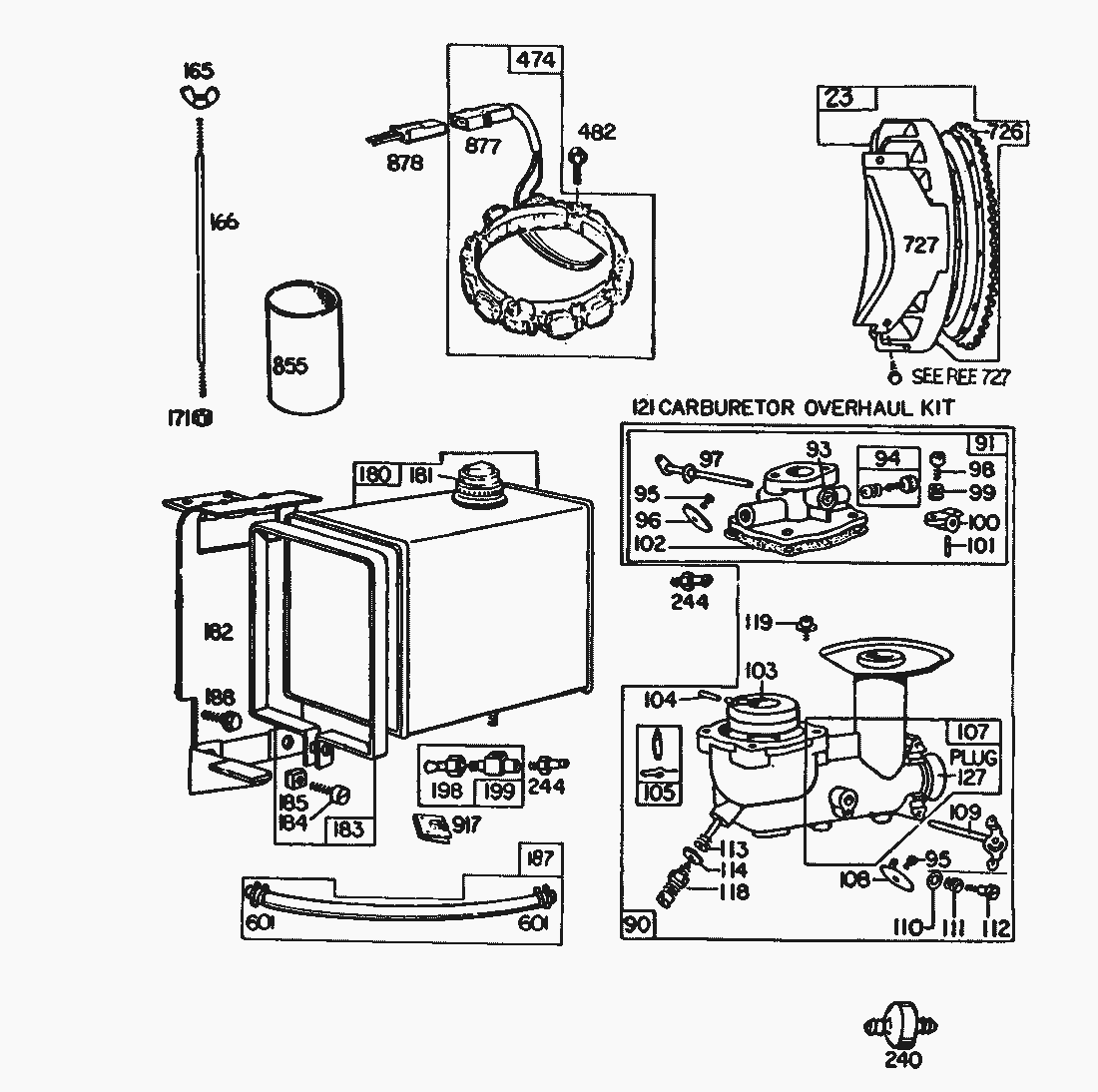

90Vergaser391992
91Vergaseroberteil391833
93Bushing-Throttle Shaft23108
94Valve Assembly-Carburetor Idleà292681
95Schraube93499
96Valve-Throttle221939
97Shaft and Lever-Throttle391596
98Screw-Machine, Fil. Hd.-8-32 x 5/8 98 63 1_366014 1 38160 Screw-Machine, Fil. Hd.-8-32 x 5/891920
99Feder26157
100Anschlag211712
101Stift93043
102Gasket-Carburetor Bodyà*270268
103Float-Carburetor298514
104Pin-Float Hingeà230896
105Schwimmerventil394681
107Body Assembly-Lower Carburetor391829
108Valve-Choke391836
109Starterwelle391884
110Washer-Choke Lever62899
111Druckfeder26155
112Schraube23123
113Nozzle-Carburetorà394730
114Gasket-Nozzleà68667
118Valve-Needleà99525
119Screw, Sem93496
121Vergaser Rep.-Satz394989
127Plug-Welchà221747
165Nut-Wing93453
166Stud-Air Cleaner231007
171Mutter92129
180
181Cap-Fuel Tank297866
182Bracket-Fuel Tank (4 Quart)222333
